Carbon fiber tripod for thermal rifle scopes, stable hunting gear support

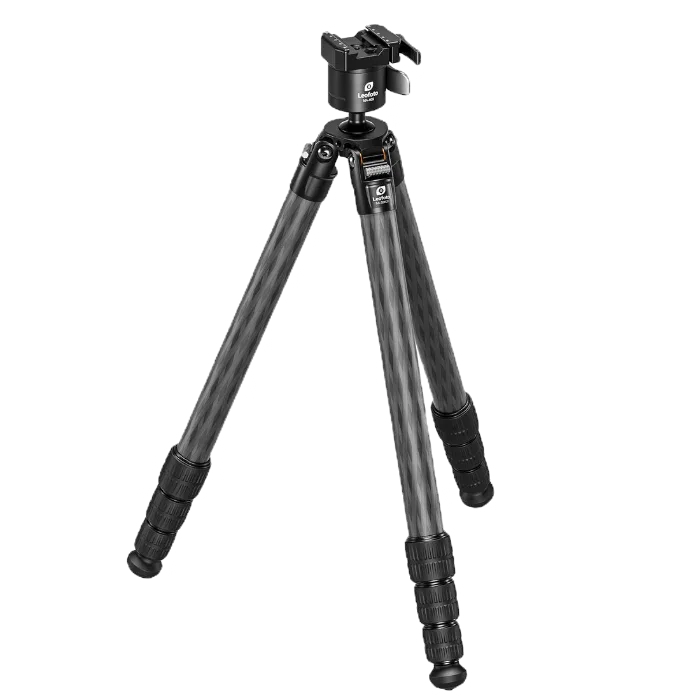

Carbon fiber tripod with ball head for thermal rifle scopes and hunting optics
Leofoto MA-40X thermal rifle scope for predator hunting, compact design with mounting bracket

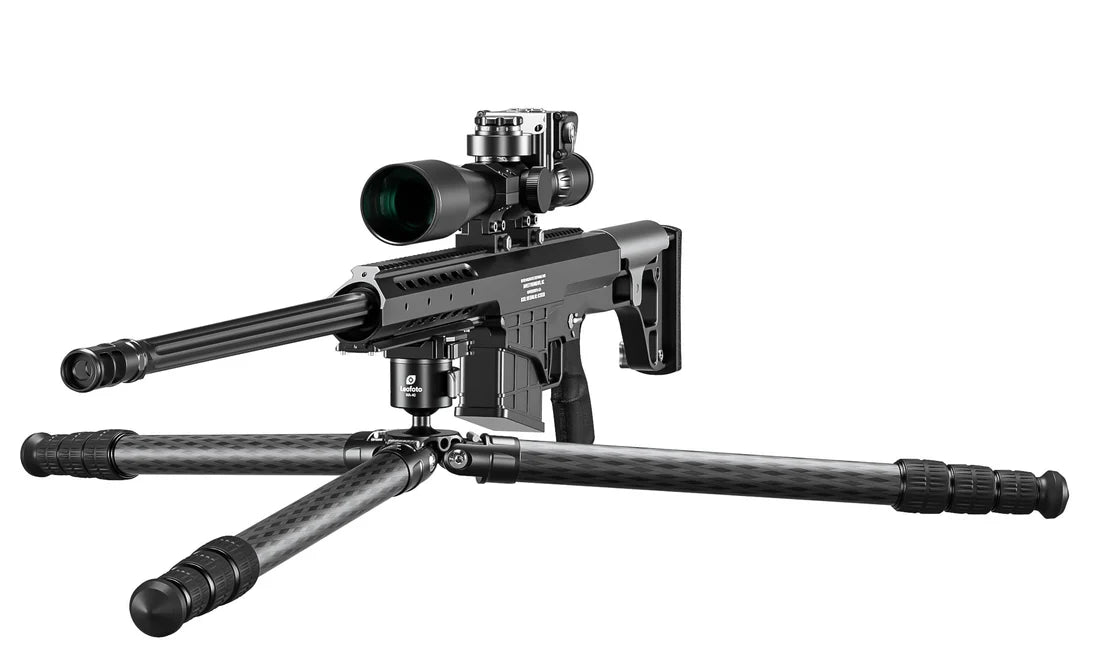

Thermal rifle scope with carbon fiber tripod for predator hunting optics

1 in stock

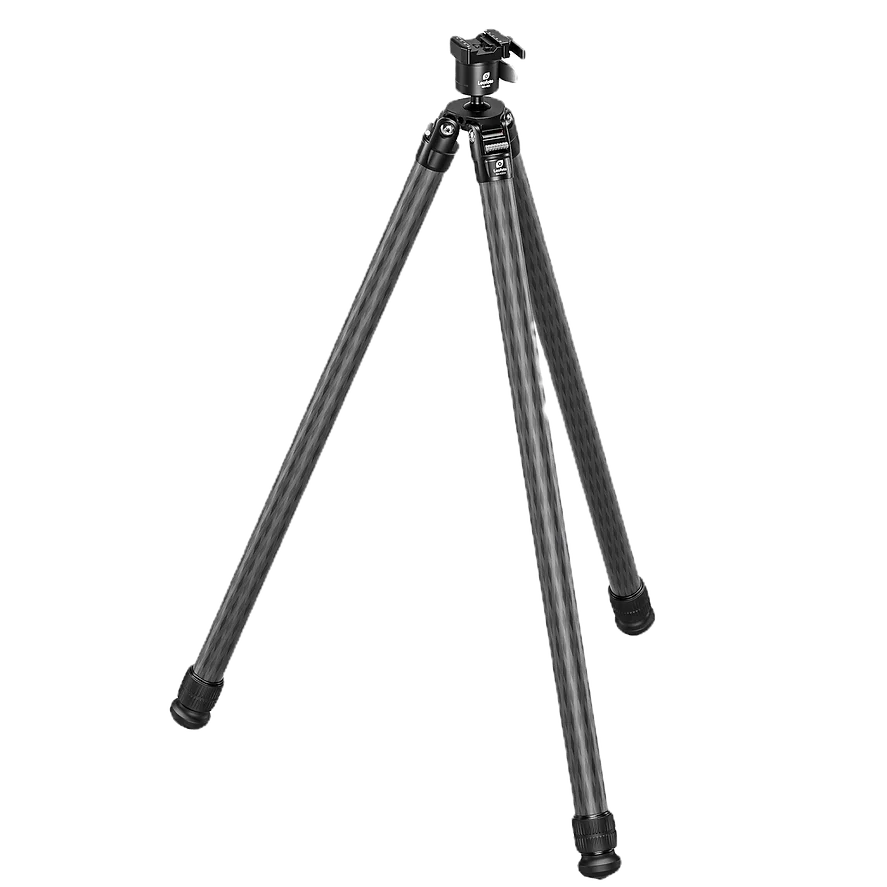

SA-402CX + MA-4 Tripod with Rapid Lock Ballhead | SA-X & 3/8"

$656.10
Regular price $656.10
Free delivery on orders over $750

If you want a lightweight, budget friendly tripod, we love this model.

The Leofoto SA-X Series tripods are one of the most compact collapsed setups on the market with a perfectly balanced weight to strength ratio. The "X" version has a newly designed apex with a rosette connector for SA-X rifle heads AND a 3/8" mounting screw to attach any standard 3/8" head. The rosette connector provides an extremely stable connection between the tripod's apex and the base of the head. The angle stop design has also been improved from the standard pull tab to a knurled bar which allows the user to adjust the angles with only one hand as opposed to two. The SA-X Series offers unparalleled versatility, built as a hunter’s companion who also enjoys long days on the range, but most requested by military, law enforcement, competitive shooters or those simply looking for one of the most compact and reliable shooting supports on the market. The SA-X Series tripods offer maximum rigidity, capable of supporting non-traditional shooting positions with a heavy load capacity. These tripods feature three angle stop positions to increase shooting capabilities and a compact design which maintains a small footprint, creating a tripod setup which is extremely easy to pack and carry on the go.

  • New "X" Version Apex Design: Rosette Connector AND 3/8" Mounting Stud
  • New "X" Version Angle Stop: Allows for one handed angle adjustment
  • Threaded 1/4” accessory socket on the side of the apex to provide the perfect placement of a strap or magic arm for holding anything from an umbrella, phone or even a kestrel
  • Tripods must occasionally withstand tremendous bending and torsion loads. It is crucial that the leg angle stops and all other structural joints are well supported. Leofoto offset leg joints fully support the leg angle stops allowing loads to be transferred straight through the strongest members of the tripod. This also means the tripod is more compact when collapsed
  • Large diameter rubber feet keep leg sidewalls from touching the ground even at the lowest settings and makes positive contact with the ground at virtually any angle
  • Hard anodized, CNC-machined 6061 T6 aluminum hardware
  • Toray Carbon Fiber Leg Tubes
  • Included: Leofoto Tripod Case

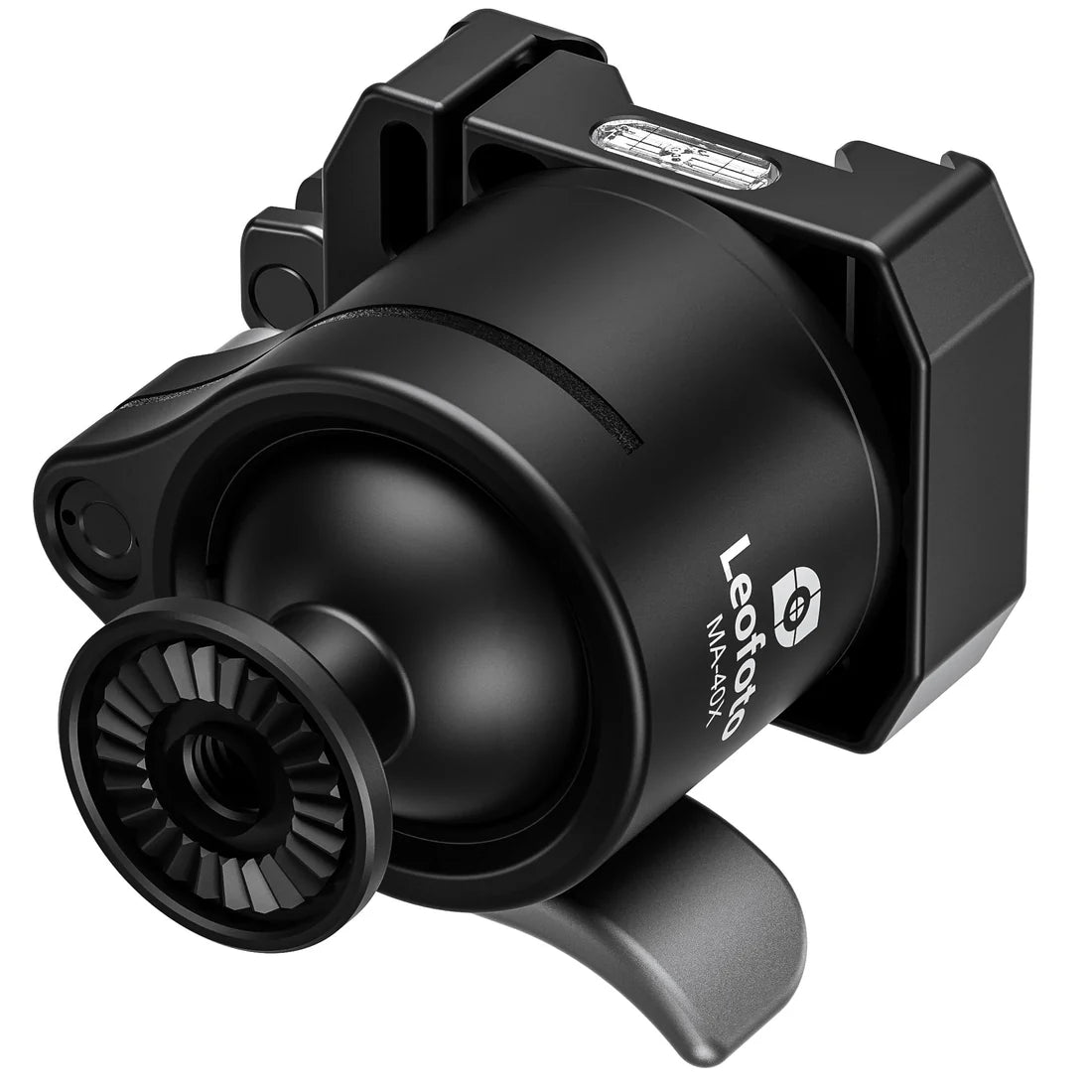

The Leofoto MA-40X Lever-Release Rapid Lock Ball Head was designed specifically to be used on an SA-X tripod, but it features both the SA-X rosette connection as well as a standard 3/8" mounting socket. The head has a lever release to lock/unlock the ball and a redesigned lever-release clamp system with an adjustable clamping width.

*The Leofoto SA-X series tripods use a new mounting system that can accept both SA-X specific rosette mounting heads as well as any standard 3/8" compatible head.

*Two versions are available: one with a dual Arca and Picatinny clamp and another with an Arca-only clamp. Please choose the option that best suits your needs.

Want something heavier and a little more stabile?  Check Out the S2 Juggernaut here.

SA-324CX+MA-40X

Rosette + 3/8”
X Angle Stops
Tubes: 32/28/25/22mm
With head
Max. height: 1530mm / 60.24in
Min. height: 176mm / 6.92in
Folded length: 613mm / 24.13in
Leg Section : 4
Weight: 1.84kg / 4.06lb
Max load: 25kg / 55.12lb

SA-324CLX+MA-40X

Rosette + 3/8”
X Angle Stops
Long ver.
Tubes: 32/28/25/22mm
With head
Max. height: 1725mm / 67.91in
Min. height: 187mm / 7.36in
Folded length: 664mm / 26.14in
Leg Section : 4
Weight: 1.91kg / 4.21lb
Max load: 25kg / 55.12lb

SA-364CX+MA-40X

Rosette + 3/8”
X Angle Stops
Tubes: 36/32/28/25mm
With head
Max. height: 1625mm / 63.98in
Min. height: 173mm / 6.81in
Folded length: 657mm / 25.86in
Leg Section : 4
Weight: 2.21kg / 4.87lb
Max load: 30kg / 66.14lb

SA-363CX+MA-40X

Rosette + 3/8”
X Angle Stops
Long ver.
Tubes: 36/32/28mm
With head
Max. height: 1683mm / 66.26in
Min. height: 188mm / 7.4in
Folded length: 786mm / 30.94in
Leg Section : 3
Weight: 2.20kg / 4.85lb
Max load: 35kg / 77.16lb

SA-402CX+MA-40X

Rosette + 3/8”
X Angle Stops
Tubes: 40/36mm
With head
Max. height: 1618mm / 63.7in
Min. height: 205mm / 8.07in
Folded length: 1004mm / 39.53in
Leg Section : 2
Weight: 2.39kg / 5.27lb
Max load: 50kg / 110.234lb
SA-403CX+MA-40X Rosette + 3/8”
X Angle Stops
Tubes: 40/36/32mm
With head
Max. height: 1573mm / 61.9in
Min. height: 180mm / 7.08in
Folded length: 754mm / 29.69in
Leg Section : 3
Weight: 2.48kg / 5.47lb
Max load: 50kg / 110.234lb
SA-404CLX+MA-40X Rosette + 3/8”
X Angle Stops
Long ver.
Tubes: 40/36/32/28mm
With head
Max. height: 1815mm / 71.46in
Min. height: 179mm / 7.05in
Folded length: 719mm / 28.3in
Leg Section: 4
Weight: 2.70kg / 5.95lb
Max load: 40kg / 88.1
