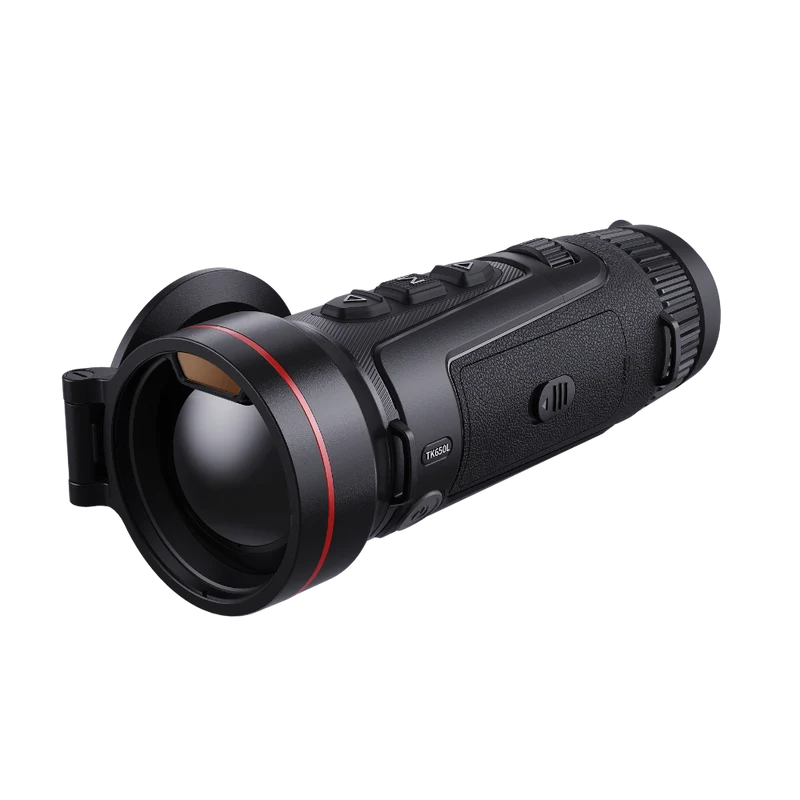

Guide Kodiak TK650 3.0 LRF thermal monocular, angled front view showing lens
Guide Kodiak TK650 3.0 LRF thermal monocular features diagram

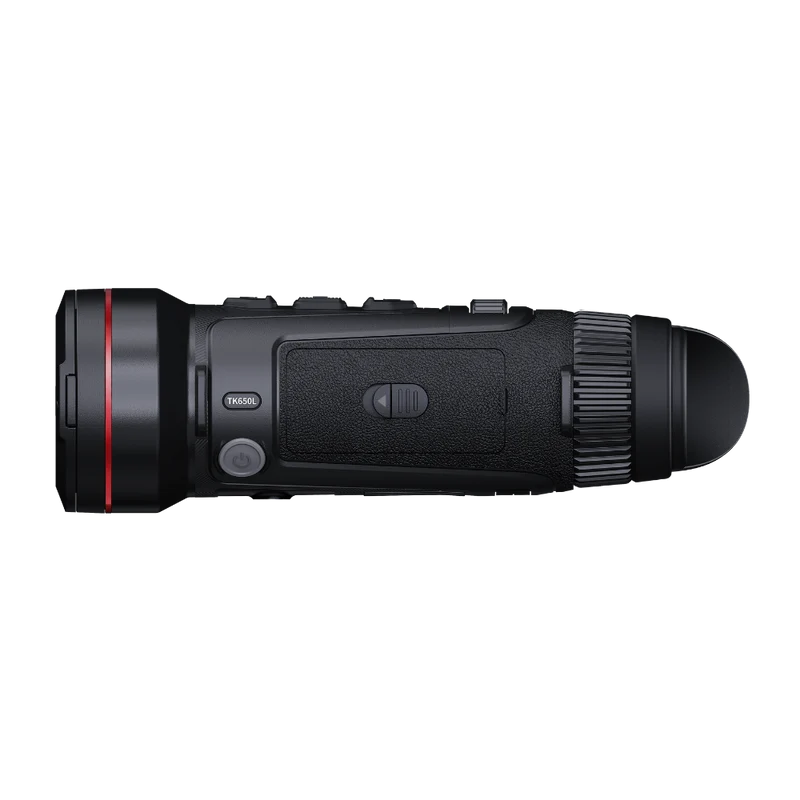

Guide Kodiak TK650 3.0 LRF thermal monocular, side view

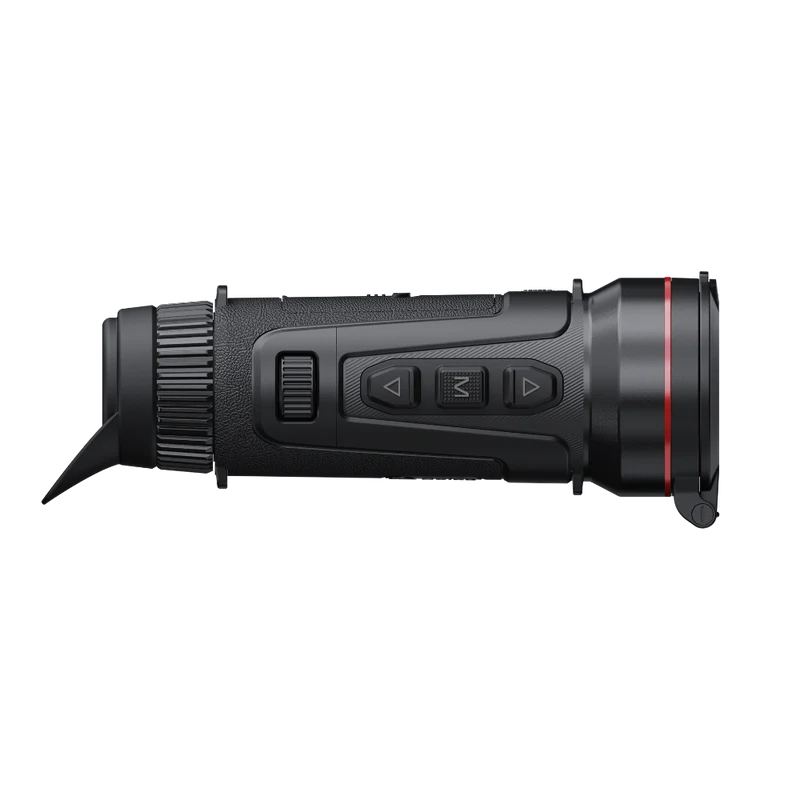

Guide Kodiak TK650 3.0 LRF thermal monocular, opposite side view

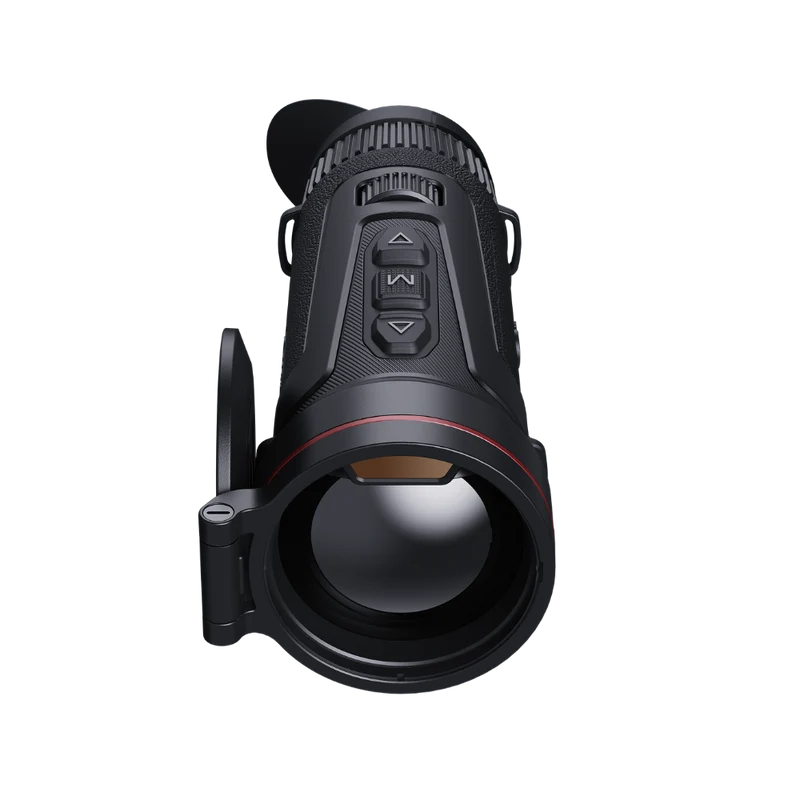

Guide Kodiak TK650 3.0 LRF thermal monocular, upright rear view

Kodiak TK650 3.0 LRF Thermal Monocular

Only 0 left in stock. Order soon.
$2,899.00
Regular price $2,899.00

🛡️ 5 Year On The Device 10 Year On The Thermal Sensor

Sketchy says your wallet's nervous
Free delivery on orders over $700

Brand New From Guide.  This is the unit for long range viewing, featuring 4X native base magnification.

  • 640x512 Apex Vision Thermal High Quality Sensor
  • 4x Base Magnification, 8x Digital Zoom
  • 1.03'' AMOLED 2560×2560: Ultra-Wide Display
  • 1950yd Detection Range
  • 5.5 hours Battery Life
  • In Lense Rangefinder Rated At 1300 Yards

Description Below

  • Sensor
    Core technology Powered by the complete ApexVision S1 architecture, the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 3.0 algorithm.
    Detector Type Uncooled VOx Infrared Detector, 8 to 14μm
    Resolution 640×512@12μm
    NETD 15mK
    Frame rate 50Hz
    Lens
    Objective lens 50mm F0.9
    Field of view 8.8°×7.0°
    FOV m@100m 15.4×12.3
    Magnification 4x-32x
    Detection range 2800yd
    Focus Manual
    Digital Zoom 8x
    Display
    Display type 1.03″AMOLED 2560×2560
    Color palettes White Hot, Black Hot, Amber Sepia, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
    Eyepiece Eye relief: 30 mm; Diopter: -6 to +6
    Hardware
    Laser rangefinder 1300yd
    WIFI 2.4G, 5G
    Interface USB-C
    Others Microphone, Bluetooth
    System
    Recording function Photo/Video (Audio recording included)
    Memory capacity 64GB
    Power
    Battery type 1 ×replaceable dedicated battery (USB-C Rechargeable)
    Operating time 5.5 hours
    Environmental
    Operating temp. -4°F to +122°F
    Encapsulation IP67
    Physical
    Weight (oz) 20.92 (battery included)
    Size (in) 7.52×2.64×3.11
    Standard Device, Hand Strap, Neck Strap, Carry Bag, Lint-Free Cloth, Dedicated Battery×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
    Optional Bluetooth Remote Control, Dedicated Battery
Guide USA Manufacturer's Warranty

Guide Sensmart is pleased to offer an industry-leading warranty on all thermal sensors. Our core components, including detectors and sensors, are backed by a 10-year warranty, ensuring your product will remain a reliable companion for years to come.

We also offer:

  • A 5-year warranty on all other components.
  • A 2-year warranty on accessories such as batteries, chargers, and cables.

Products purchased from Guide Sensmart Company, the official US online store, and authorized dealers qualify for our standard after-sales services. These services include a free warranty, returns and exchanges, and original factory repairs, provided you present a sales certificate or receipt.

Our after-sales service guarantee does not cover the following situations:

  1. Unauthorized modifications, disassembly, or repairs not approved by Guide Sensmart.
  2. Malfunctions or damages due to misuse, improper environments, or poor maintenance.
  3. Accidents caused by force majeure events like fires, floods, earthquakes, or lightning.
  4. Normal wear and tear during product use.
  5. Alteration, replacement, or damage to the original serial number label, absence of a serial number, or discrepancies between the product model or number on the warranty certificate and the actual product.
  6. Consumable accessories, such as batteries or protective films, that wear out naturally unless failure is due to material or process defects.
  7. Product completeness and appearance issues not raised upon acceptance.
  8. Failures or damages caused by third-party products, software, services, or actions.

Our warranty ensures repair of manufacturer defects during the specified period if the item has been used according to the user manual. The warranty excludes any external damage to the device, its casing, or adjustable parts' movements.

During the warranty period, Guide Sensmart will, at its discretion, repair or replace any optic that becomes defective from normal use. If repair is not possible, we will provide a replacement in equal or better condition.

Our warranty follows the product, not the original owner, and is tied to the sale date to the dealer or end user registration. It covers normal use and excludes cosmetic damage, normal wear, intentional damage, theft, loss, acts of God, or improper use. Any product that is modified, opened, or tampered with will void the warranty. Altered or damaged serial numbers will also void the warranty.

  • Customers must fullfill an RMA before sending their unit. Customers must ship products to Guide Sensmart USA at their own expense. Guide Sensmart USA will return the product at no cost. Returns without an RMA will not be accepted. Guide Sensmart USA is not liable for damages or loss during shipping to our facility. Products returned under warranty should be packaged securely to prevent transit damage and must include:
  1. A detailed description of the problem and error conditions.
  2. A copy of the original receipt showing the purchase date and location.
  3. Return shipping information, including the return address and contact person.

For any questions, please contact us and we will get back to you shortly.

Please note:
The period during which repair services are provided starts from the day of sale or, if undetermined, from the date of production. The warranty period for rechargeable batteries/units, including those in the package, is two years.

Begining of warranty is linked to your purchase date, therefore keep your invoice in order to justify a warranty request.

Our after-sales department is located in Dallas, Texas, ensuring a fast and hassle free replacement or repairement process.

How to make a warranty claim:

Please fill out a RMA form on this page or contact the support team repair.us@guideir.com in event of an issue that would need a warranty claim.
