Kodiak TK635 3.0 LRF Thermal Monocular
🛡️ 5 Year Device 10 Year Thermal Sensor Warranty
See more of the field, and know exactly how far every animal is.
The Kodiak TK635 is the wide-view model in Guide’s Kodiak line. It has the same 640×512 sensor, AMOLED display and 1,300-yard rangefinder as the TK650, paired with a 35mm F0.9 lens. That gives you a wider field of view and 2.8x base magnification, so it’s quicker to sweep a field and pick up movement, especially when dogs come in from more than one direction.
Scan wide, then zoom in. The 12.5° field of view covers more ground with each sweep, and 8x digital zoom lets you take a closer look once something lights up.
Plenty of reach. Detection range is rated to 1,950 yards, and the 15mK sensor holds fine heat detail on damp, foggy nights when contrast drops.
Range without switching devices. The built-in laser rangefinder is rated to 1,300 yards, so you can spot, identify and range on one unit.
Lighter to carry. It weighs 18.5 oz with the battery, about 2.4 oz lighter than the TK650, which you’ll notice on a long walk in or hanging from your neck all night.
Easy on your eye. The 1.03" AMOLED display is sharp and high-contrast, with 30mm of eye relief and -6 to +6 diopter, so it works with or without glasses.
Record the hunt. 64GB of built-in storage records photo and video with audio. Wi-Fi and Bluetooth are built in.
Made for cold nights. It runs from -4°F to 122°F, is IP67 waterproof, and gets about 5.5 hours per battery. Two batteries come in the box.
Who it’s for: hunters calling woods edges, broken country and mid-range setups, or anyone who wants fast scanning. If you mostly glass wide-open ground at long distance, look at the Kodiak TK650.
| Sensor | ||||
|---|---|---|---|---|
| Core technology | Powered by the complete ApexVision S1 architecture, the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 3.0 algorithm. | |||
| Detector Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||

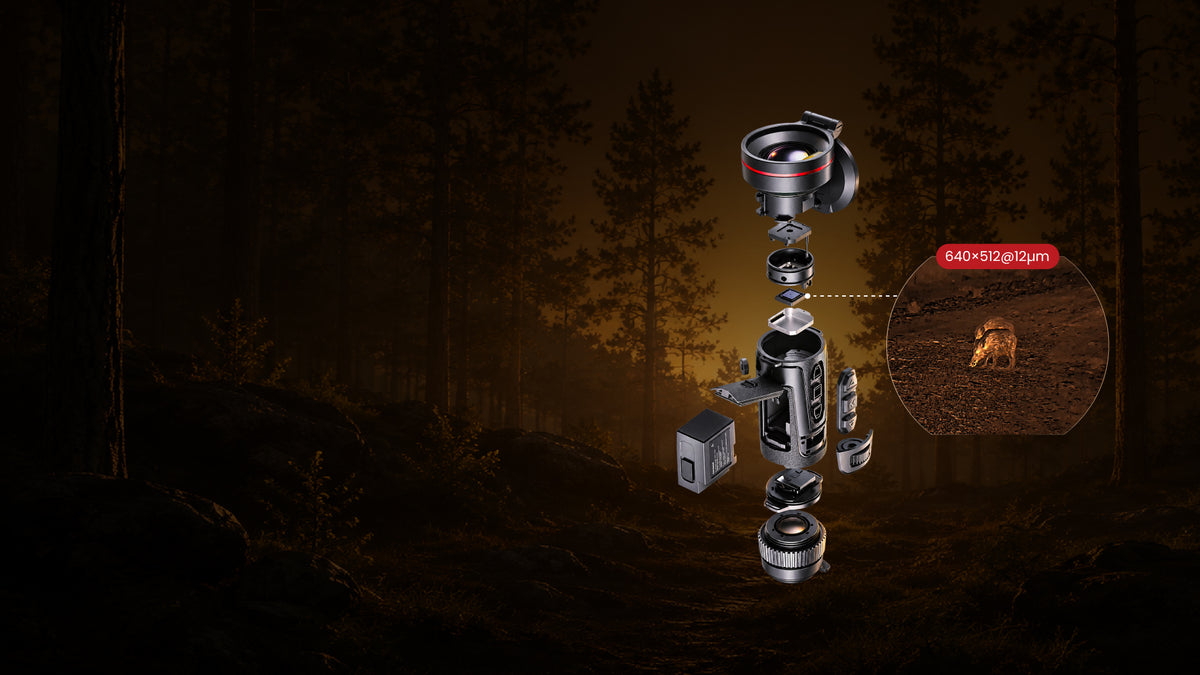

| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm F0.9 | |||
| Field of view | 12.5°×10° | |||
| FOV m@100m | 21.9×17.6 | |||
| Magnification | 2.8x-22.4x | |||
| Detection range | 1950yd | |||
| Focus | Manual | |||
| Digital Zoom | 8x | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.03″AMOLED 2560×2560 | |||
| Color palettes | White Hot, Black Hot, Amber Sepia, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 30 mm; Diopter: -6 to +6 | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1300yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 1 ×replaceable dedicated battery (USB-C Rechargeable) | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (oz) | 18.48 (battery included) | |||
| Size (in) | 7.17×2.64×3.11 | |||
| Standard | Device, Hand Strap, Neck Strap, Carry Bag, Lint-Free Cloth, Dedicated Battery×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Dedicated Battery | |||
