GUIDE USA TB650 PRO Gen 2 Thermal Clip On 640x512
TB650 PRO 2.0 thermal clip-on device features
Guide TB650 PRO LRF 2.0 Thermal Clip-On 640x512 50mm In-Lens Rangefinder
Guide TB650 PRO LRF 2.0 Thermal Clip-On 640x512 50mm In-Lens Rangefinder
Guide TB650 PRO LRF 2.0 Thermal Clip-On 640x512 50mm In-Lens Rangefinder
Guide TB650 PRO LRF 2.0 Thermal Clip-On 640x512 50mm In-Lens Rangefinder

Guide TB650 PRO LRF 2.0 Thermal Clip-On 640x512 50mm In-Lens Rangefinder

$3,699.00
Regular price $3,699.00
Free delivery on orders over $999

Check Out DEMO Video HERE

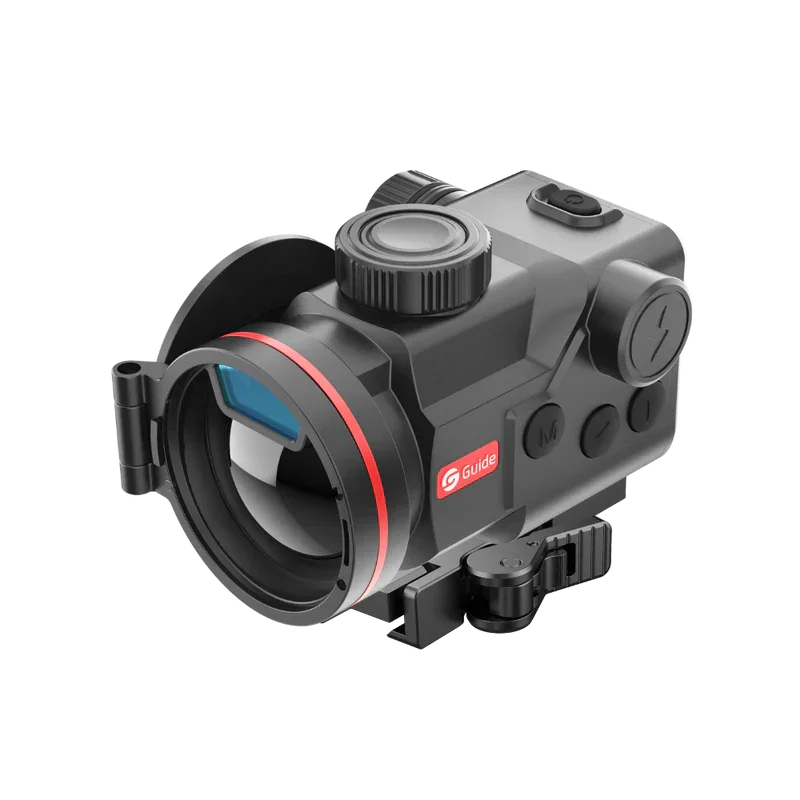

The Guide TB650 PRO LRF 2.0 is a high-performance thermal clip-on designed for hunters who want to add thermal capability to their existing daytime scope without changing their shooting setup.

Built around a 640x512 12μm thermal sensor with 18mK sensitivity, this unit delivers strong image detail and detection performance while maintaining a true 1x clip-on profile. The 50mm F0.9 germanium lens provides excellent light transmission and target clarity, making it a serious option for predator hunting and longer-range detection.

One of the standout features of the TB650 PRO 2.0 is its in-lens laser rangefinder, eliminating the need for bulky external modules. This keeps the system compact while still delivering accurate distance readings out to approximately 1630 yards.

Guide’s shutterless G-Zero technology ensures a smooth, uninterrupted image with no freeze during operation, while the 1920x1080 AMOLED display keeps the image sharp and responsive in real-time.

If you're looking for a thermal clip-on scope with rangefinder, the TB650 PRO 2.0 is built to deliver performance without forcing you to abandon your daytime optic.

Key Features

  • 640x512 thermal sensor with 12μm pixel pitch
  • Ultra-sensitive 18mK NETD for enhanced image detail
  • 50mm F0.9 germanium objective lens
  • True 1x magnification for clip-on use
  • Integrated in-lens laser rangefinder (approx. 1630 yards)
  • Shutterless G-Zero technology (no image freeze)
  • 1920x1080 AMOLED display
  • 50Hz refresh rate for smooth motion
  • 64GB internal storage for video and photos
  • Rugged IP68 waterproof rating
  • 6000 joules recoil resistance

5 Year Device Warranty 10 Year Core Warranty Best In the Business

Contact us for advice on mount options.

SENSOR
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 18mK
Frame rate 50Hz



LENS
Objective lens 50mm, F0.9
Field of view 8.8°×6.6°
FOV m@100m 15×11
Magnification 1x
Detection range 2800yd
Focus Manual



DISPLAY
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm



HARDWARE
Laser rangefinder 1630yd
WIFI 2.4G, 5G
Interface USB-C (Power supply/USB2.0)
Others Microphone, Bluetooth



SYSTEM
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB



POWER
Battery type Single, Replaceable 18650 Battery
Operating time 5 hours



ENVIRONMENAL
Operating temp. -4°F to +122°F
Shock 6000J
Encapsulation IP68



PHYSICAL
Weight (oz) 17.28
Size (in) 5.67×3.39×3.11
Standard Device, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, Adapter Ring, 18650 Battery



Guide USA Manufacturer's Warranty

Guide Sensmart is pleased to offer an industry-leading warranty on all thermal sensors. Our core components, including detectors and sensors, are backed by a 10-year warranty, ensuring your product will remain a reliable companion for years to come.

We also offer:

  • A 5-year warranty on all other components.
  • A 2-year warranty on accessories such as batteries, chargers, and cables.

Products purchased from Guide Sensmart Company, the official US online store, and authorized dealers qualify for our standard after-sales services. These services include a free warranty, returns and exchanges, and original factory repairs, provided you present a sales certificate or receipt.

Our after-sales service guarantee does not cover the following situations:

  1. Unauthorized modifications, disassembly, or repairs not approved by Guide Sensmart.
  2. Malfunctions or damages due to misuse, improper environments, or poor maintenance.
  3. Accidents caused by force majeure events like fires, floods, earthquakes, or lightning.
  4. Normal wear and tear during product use.
  5. Alteration, replacement, or damage to the original serial number label, absence of a serial number, or discrepancies between the product model or number on the warranty certificate and the actual product.
  6. Consumable accessories, such as batteries or protective films, that wear out naturally unless failure is due to material or process defects.
  7. Product completeness and appearance issues not raised upon acceptance.
  8. Failures or damages caused by third-party products, software, services, or actions.

Our warranty ensures repair of manufacturer defects during the specified period if the item has been used according to the user manual. The warranty excludes any external damage to the device, its casing, or adjustable parts' movements.

During the warranty period, Guide Sensmart will, at its discretion, repair or replace any optic that becomes defective from normal use. If repair is not possible, we will provide a replacement in equal or better condition.

Our warranty follows the product, not the original owner, and is tied to the sale date to the dealer or end user registration. It covers normal use and excludes cosmetic damage, normal wear, intentional damage, theft, loss, acts of God, or improper use. Any product that is modified, opened, or tampered with will void the warranty. Altered or damaged serial numbers will also void the warranty.

  • Customers must fullfill an RMA before sending their unit. Customers must ship products to Guide Sensmart USA at their own expense. Guide Sensmart USA will return the product at no cost. Returns without an RMA will not be accepted. Guide Sensmart USA is not liable for damages or loss during shipping to our facility. Products returned under warranty should be packaged securely to prevent transit damage and must include:
  1. A detailed description of the problem and error conditions.
  2. A copy of the original receipt showing the purchase date and location.
  3. Return shipping information, including the return address and contact person.

For any questions, please contact us and we will get back to you shortly.

Please note:
The period during which repair services are provided starts from the day of sale or, if undetermined, from the date of production. The warranty period for rechargeable batteries/units, including those in the package, is two years.

Begining of warranty is linked to your purchase date, therefore keep your invoice in order to justify a warranty request.

Our after-sales department is located in Dallas, Texas, ensuring a fast and hassle free replacement or repairement process.

How to make a warranty claim:

Please fill out a RMA form on this page or contact the support team repair.us@guideir.com in event of an issue that would need a warranty claim.
