GUIDE USA TU 635 LRF GEN 3 Thermal scope

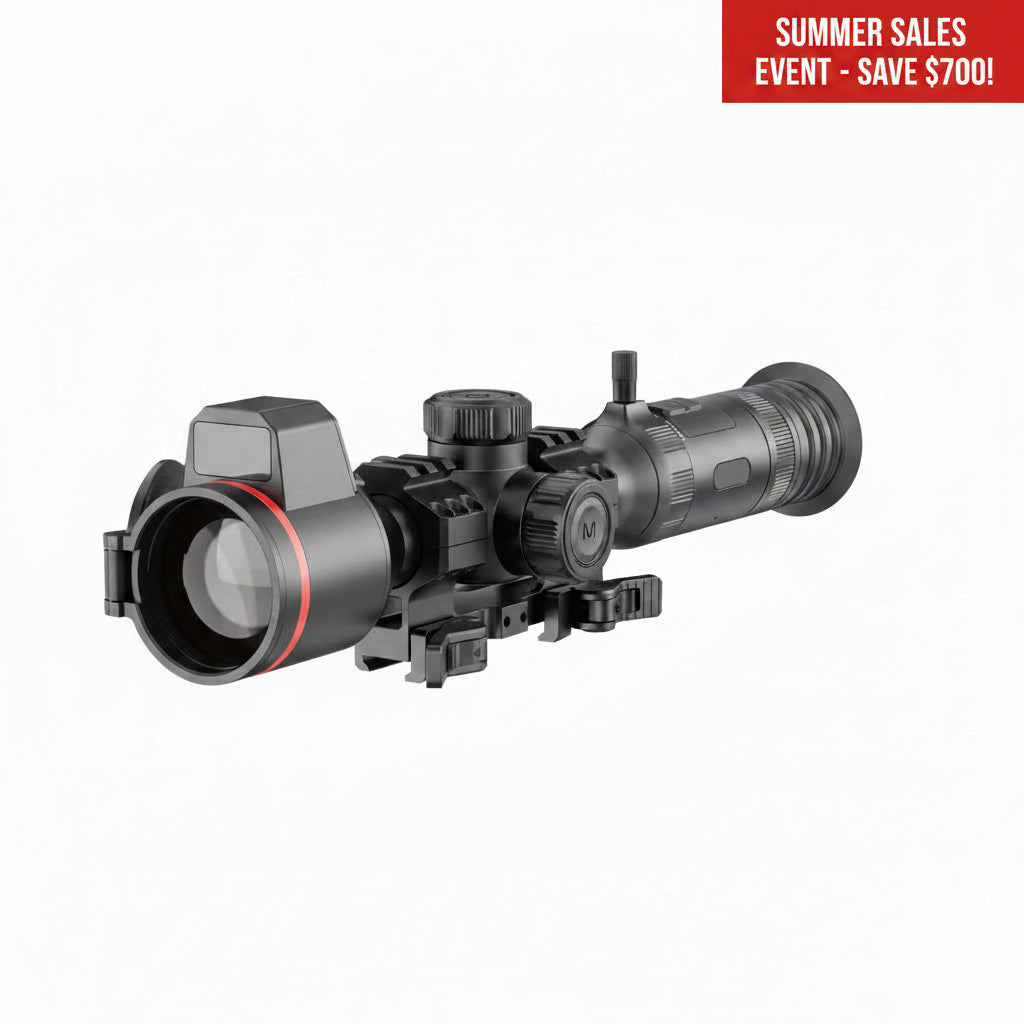

TU 635 LRF 3.0 thermal riflescope with laser rangefinder, 640x512 sensor, digital zoom, and QD mount for predator hunting
Guide thermal scope accessories: QD mount, eye cup, carrying bag, 18650 batteries, charger, 5V adapter
Guide thermal rifle scope with 10 reticle styles, 5 colors, 5 brightness levels, and 10 zeroing profiles

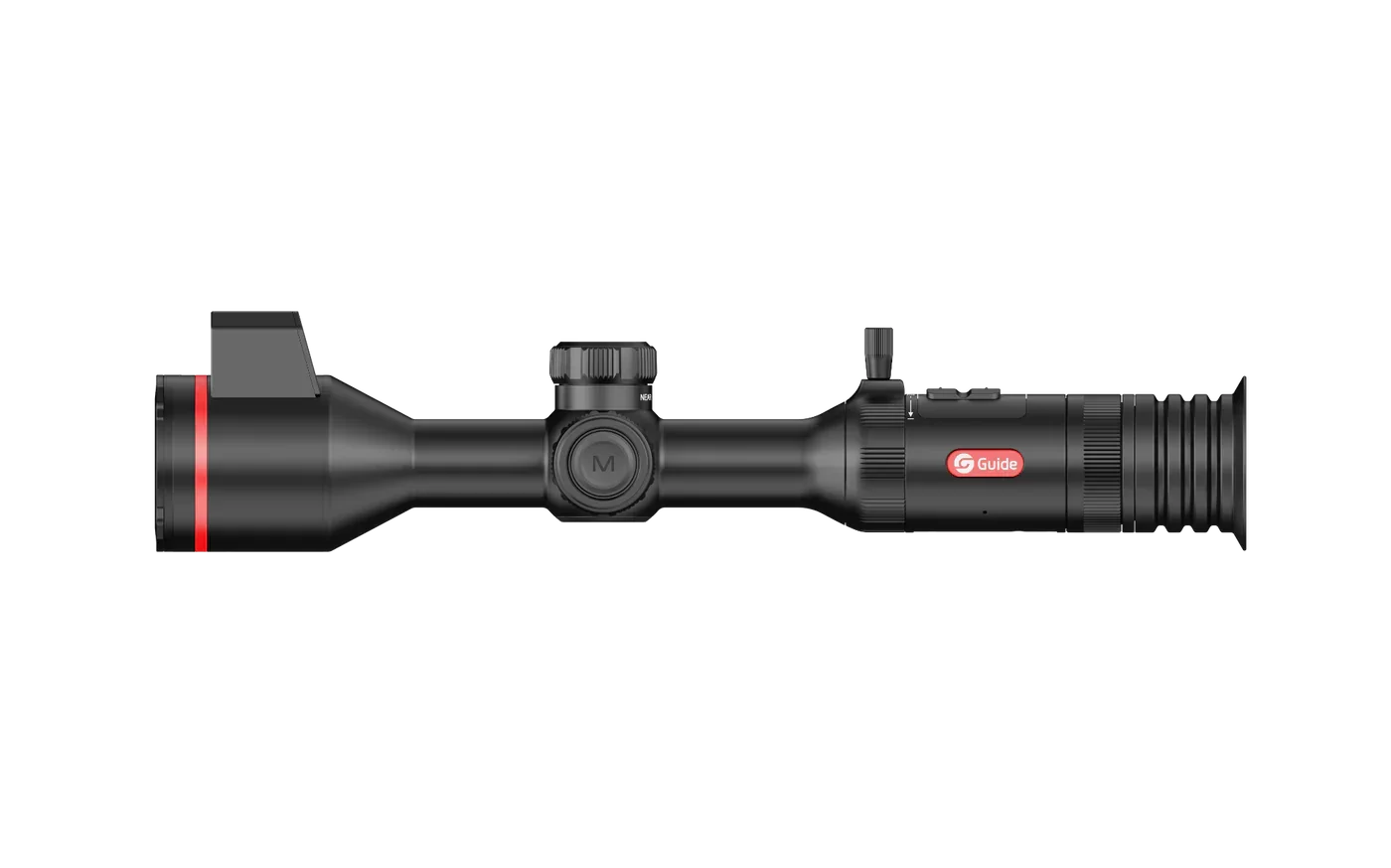

Black thermal rifle scope with textured adjustment knobs for predator hunting
Guide thermal rifle scope with red accent, designed for predator hunting and night vision use.
Hunter using thermal rifle scope with 256GB storage, capturing video, photo, and sound in low light
Hyper-light thermal sensor chip with 18mK NETD, 640x512 & 1280x1024 resolution for predator hunting optics
Thermal rifle scope with 12-hour battery life, USB-C charging, and 18650 standard battery compatibility
Thermal rifle scope detecting hog at 1500m range for night predator hunting

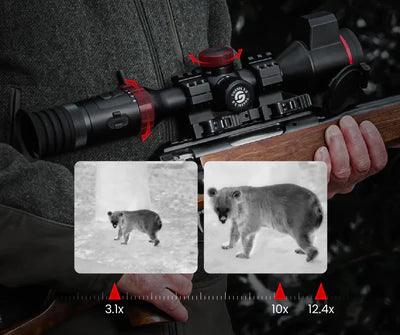

Thermal rifle scope with 3.1x to 12.4x zoom displaying coyote targets for predator hunting

1 in stock

21% off

Guide TU635 LRF 3.0 Thermal Scope (640 Core, 35mm, 1600 Yard Rangefinder)

$2,599.00
Regular price $3,299.00 Sale price $2,599.00
Free delivery on orders over $750

Check Out Demo Video Here

Check Out Southern Extreme TV Review Here.

The Guide TU635 LRF 3.0 thermal scope is a versatile 640×512 thermal optic built for hunters who want fast target acquisition, a wider field of view, and reliable real-world performance. Featuring a 35mm objective lens, integrated laser rangefinder, and proven thermal core, the TU635 delivers excellent detection and ease of use in a more forgiving, user-friendly platform.


Where This Scope Fits

The TU635 LRF 3.0 is designed for hunters who prioritize speed and field of view over maximum magnification.

Using the same core thermal system as the TU650 series, the TU635 delivers comparable detection performance—but with a wider view and easier target acquisition.

👉 This makes it one of the best options for:

  • Mixed terrain
  • Closer-range setups
  • Hunters who want a scope that’s easier to run

 Key Features

  • 640×512 Thermal Sensor (12µm, ~18mK NETD) – Proven detection and sensitivity
  • 35mm Objective Lens – Wider field of view for faster target acquisition
  • Laser Rangefinder (~1600 yards) – Accurate distance for real hunting situations
  • ~3x Base Magnification – Balanced for scanning and shooting
  • 1920×1080 AMOLED Display – Clean, usable image
  • ~2800 Yard Detection Range – Strong detection capability
  • Dual Battery System (Internal + 18650) – Extended runtime
  • 30mm Tube Design – Familiar mounting platform

 Real-World Performance

In the field, the TU635 stands out for how easy it is to use.

The wider field of view allows you to:

  • Pick up animals faster
  • Track movement more naturally
  • Stay on target with less effort

While it gives up some long-range magnification compared to the TU650, it gains speed and usability—making it a strong choice for many real-world hunting situations.

TU635 LRF 3.0 vs TU650 LRF 3.0

The Guide TU635 LRF 3.0 and TU650 LRF 3.0 share the same core thermal system, but are designed for different hunting styles.

Both scopes use a 640×512 thermal sensor with ~18mK sensitivity and a 1920×1080 display, meaning detection capability and base image quality are nearly identical across both models.

The difference comes down to lens size and magnification—which directly changes how each scope performs in the field.


What Actually Changes

The TU635 uses a 35mm lens with ~3x base magnification, while the TU650 uses a 50mm lens with ~3.7–3.9x base magnification.

👉 Same thermal performance
👉 Completely different feel in use


Real-World Difference

🟢 TU635 LRF 3.0 (35mm)

  • Wider field of view
  • Easier to scan and locate animals
  • Better for closer shots and moving targets

👉 Faster and more forgiving


TU650 LRF 3.0 (50mm)

  • Higher magnification
  • More detail at distance
  • Better for long-range identification

👉 More precise and distance-focused


Which One Should You Choose?

  • Choose TU635 → if you want speed, field of view, and ease of use
  • Choose TU650 → if you want more reach and long-range identification

👉 You’re not choosing better or worse
👉 You’re choosing wide vs reach


Bottom Line

The TU635 and TU650 run the same thermal engine—but the lens changes everything.

  • TU635 = speed, field of view, ease of use
  • TU650 = magnification, distance, precision

5 Year Scope Warranty And 10 Year Sensor Warranty Best In The Business

SENSOR
Type Uncooled VOx Thermal Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 18mK
Frame rate 50 Hz



LENS
Objective lens 35mm, F1.0
Field of view 11.8°×7.1°
FOV m@100m 21×12
Magnification 3x~24x
Detection range 1950yd
Focus Manual



DISPLAY
Display type 0.49'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x



HARDWARE
Laser rangefinder 1500m/1630yd
WIFI 2.4G, 5G
Interface USB-C (Charge/USB2.0)
Tube diameter Standard 30 mm
Others Microphone, Bluetooth



SYSTEM
Recording function Photo/Video (Audio recording included)
Memory capacity 128GB



POWER
Battery type 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time 12 hours



ENVIRONMENTAL
Operating temp. -20°C to 50°C / -4°F to +122°F
Recoil Rating .300 Win Mag
Shock 6000J/1200G
Encapsulation IP68



PHYSICAL
Weight (oz) 28.75
Size (mm/in) 14.72×3.50×3.23
Standard Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, 18650 Battery
