GUIDE USA TD653 LRF Thermal Monocular
GUIDE USA TD653 LRF Thermal Monocular Features
GUIDE USA TD653 LRF Thermal Monocular Box Contents
Black thermal rifle scope with red accent, control buttons, and eyepiece for night hunting
Vision Enhancement Imager for thermal rifle scopes, night hunting gear, predator hunting optics
Guide thermal rifle scope with red accent, textured grip, and control buttons for night hunting
Guide thermal monocular for night hunting with 400/640/1280 core options, compact design, red accent details

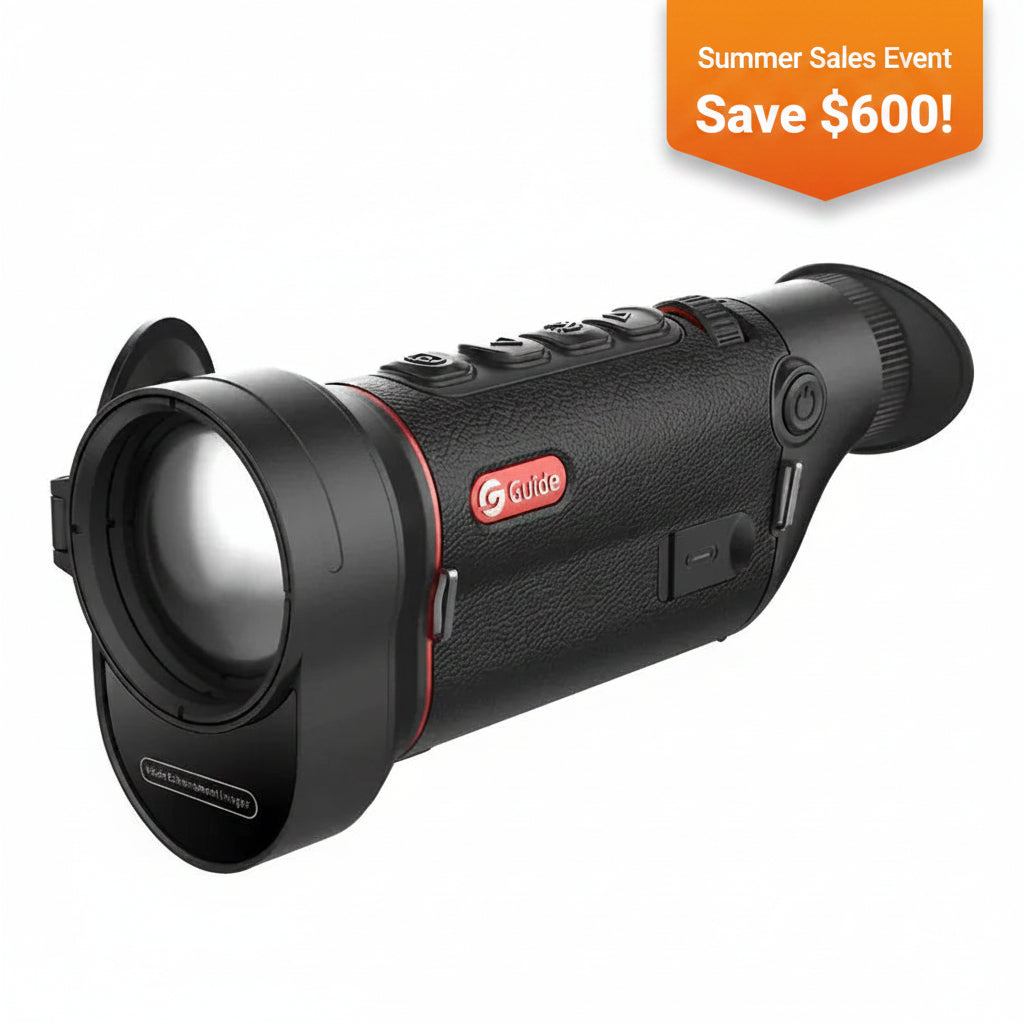

Guide TD653 LRF Thermal Monocular (640 Core, 50mm, Laser Rangefinder)
Guide TD653 LRF Thermal Monocular (640 Core, 50mm, Laser Rangefinder)
Guide TD653 LRF Thermal Monocular (640 Core, 50mm, Laser Rangefinder)
Guide TD653 LRF Thermal Monocular (640 Core, 50mm, Laser Rangefinder)

2 in stock

25% off

Guide TD653 LRF Thermal Monocular (640 Core, 50mm, Laser Rangefinder)

$1,799.00
Regular price $2,399.00 Sale price $1,799.00
Free delivery on orders over $750

Check Out Demo Video Here

The Guide TD653 LRF thermal Scanner is a high-performance 640×512 handheld thermal built for long-range detection and target identification. Featuring a 50mm objective lens, integrated laser rangefinder, and advanced image processing, the TD653 delivers clear, detailed thermal imaging for hunters who need to locate and evaluate targets at extended distances.


Why the TD653 Stands Out

The TD653 is designed for users who prioritize range and detail in a handheld scanner.

Its 50mm lens increases base magnification and improves identification at distance, making it ideal for open terrain where understanding what you’re looking at matters just as much as finding it.


Key Features

  • 640×512 Thermal Sensor (12µm, ~18mK NETD) – Strong detection and sensitivity
  • 50mm Objective Lens – Improved long-range identification
  • Integrated Laser Rangefinder – Accurate ranging in real-world conditions
  • High-Resolution AMOLED Display – Clean, usable image
  • Extended Detection Range (~2800 yards) – Built for open terrain
  • Compact Handheld Design – Lightweight and easy to carry
  • Rechargeable Battery System – Reliable runtime in the field

Real-World Use

The TD653 is built for scanning large areas and identifying animals before transitioning to a weapon-mounted optic. The added magnification helps reduce guesswork at distance, making it a strong choice for predator hunters working open fields and longer-range setups.


Bottom Line

The Guide TD653 LRF is a powerful handheld thermal monocular built for hunters who want maximum reach and better identification at distance. With its 640 core, 50mm lens, and integrated rangefinder, it delivers reliable performance in demanding conditions.

Don't the wide field of view?  Check out the Guide USA TD 633 LRF here.

5 Year Device Warranty and 10 Year Year Sensor Warranty Best In the Business

SENSOR
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz



LENS
Objective lens 50mm, F1.0
Field of view 8.8°×6.6°
FOV m@100m m@100m15×12
Magnification 2.6x~20.8x
Detection range 2600m/2800yd
Focus Manual



DISPLAY
Display type 0.36'' AMOLED 1280×960
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief:20mm; Diopter: -6 to +6; Zoom: 13.8x



HARDWARE
Laser Rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB-C (Charge/USB2.0)
Tube diameter Standard 30 mm
Others Microphone, Bluetooth



SYSTEM
Recording function Photo/Video (Audio recording included)
Memory capacity 256GB



POWER
Battery type 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time 14 hours



ENVIRONMENTAL
Operating temp. -4°F to +122°F
Recoil Rating .300 Win Mag
Shock 6000J/1200G
Encapsulation IP68



PHYSICAL
Weight (oz) 32.56
Size (in) 17.75×3.54×3.11
Standard Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, 18650 Battery



Guide USA Manufacturer's Warranty

Guide Sensmart is pleased to offer an industry-leading warranty on all thermal sensors. Our core components, including detectors and sensors, are backed by a 10-year warranty, ensuring your product will remain a reliable companion for years to come.

We also offer:

  • A 5-year warranty on all other components.
  • A 2-year warranty on accessories such as batteries, chargers, and cables.

Products purchased from Guide Sensmart Company, the official US online store, and authorized dealers qualify for our standard after-sales services. These services include a free warranty, returns and exchanges, and original factory repairs, provided you present a sales certificate or receipt.

Our after-sales service guarantee does not cover the following situations:

  1. Unauthorized modifications, disassembly, or repairs not approved by Guide Sensmart.
  2. Malfunctions or damages due to misuse, improper environments, or poor maintenance.
  3. Accidents caused by force majeure events like fires, floods, earthquakes, or lightning.
  4. Normal wear and tear during product use.
  5. Alteration, replacement, or damage to the original serial number label, absence of a serial number, or discrepancies between the product model or number on the warranty certificate and the actual product.
  6. Consumable accessories, such as batteries or protective films, that wear out naturally unless failure is due to material or process defects.
  7. Product completeness and appearance issues not raised upon acceptance.
  8. Failures or damages caused by third-party products, software, services, or actions.

Our warranty ensures repair of manufacturer defects during the specified period if the item has been used according to the user manual. The warranty excludes any external damage to the device, its casing, or adjustable parts' movements.

During the warranty period, Guide Sensmart will, at its discretion, repair or replace any optic that becomes defective from normal use. If repair is not possible, we will provide a replacement in equal or better condition.

Our warranty follows the product, not the original owner, and is tied to the sale date to the dealer or end user registration. It covers normal use and excludes cosmetic damage, normal wear, intentional damage, theft, loss, acts of God, or improper use. Any product that is modified, opened, or tampered with will void the warranty. Altered or damaged serial numbers will also void the warranty.

  • Customers must fullfill an RMA before sending their unit. Customers must ship products to Guide Sensmart USA at their own expense. Guide Sensmart USA will return the product at no cost. Returns without an RMA will not be accepted. Guide Sensmart USA is not liable for damages or loss during shipping to our facility. Products returned under warranty should be packaged securely to prevent transit damage and must include:
  1. A detailed description of the problem and error conditions.
  2. A copy of the original receipt showing the purchase date and location.
  3. Return shipping information, including the return address and contact person.

For any questions, please contact us and we will get back to you shortly.

Please note:
The period during which repair services are provided starts from the day of sale or, if undetermined, from the date of production. The warranty period for rechargeable batteries/units, including those in the package, is two years.

Begining of warranty is linked to your purchase date, therefore keep your invoice in order to justify a warranty request.

Our after-sales department is located in Dallas, Texas, ensuring a fast and hassle free replacement or repairement process.

How to make a warranty claim:

Please fill out a RMA form on this page or contact the support team repair.us@guideir.com in event of an issue that would need a warranty claim.
